Pinacate is one of the Quaternary alkali-olivine basalt volcanic fields that are common to tectonically active regions like the western Cordillera of North America; fifty fields similar to it are within 1000 km. Alkaline magmas have been sporadically rising from the mantle, through the continental crust under Pinacate, for the past three-odd million years. The dark basalt contrast against the light tan sand of Gran Desierto de Altar can be picked out on whole earth images.

The upper Gulf of California basin began developing about seven million years ago, after Baja California was torn away from North America by the northwestward drifting Pacific Plate. Plate boundary transform faulting and seafloor spreading are hidden beneath sand and water on the far side of the Gulf in this image. Seafloor basalts of that boundary are geochemically different from the alkali-olivine basalts of Pinacate, which is not related to plate tectonics.

Opening the Gulf brought the sea (base level) inland, changing the energy regimes of rivers around it; especially the Colorado River that integrated itself across the Colorado Plateau to connect with the Gulf by about five and a half million years. The Gran Desierto de Altar was carried from the Colorado Plateau by the river to its delta, where westerly winds picked up the sand and dust to blow it eastward (down the right side of the picture). The reddish color of the dune fields reflects their origin as sandstone and redbed mudstone on the Plateau.

Who discovered Pinacate? It was not so much discovered as it was gradually noticed by people looking for other things.

MAJOR WEBSITE REVISION

Finally, the website I have been promising for FOUR years is up! This is an image-centered website where important information is in the detail and should be viewed on the largest screen possible. This being the modern world, however, where the cellphone is the most common platform, I have made the site responsive, delivering screen-width-appropriate images to save bandwidth. A link to the old site is HERE and in the menu, should you need the aggrivation. This site will be improving regularly.


Overview of whole field

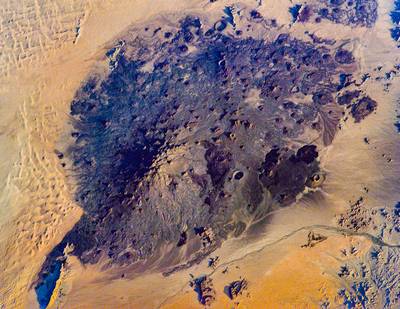

The elements of Pinacate geology are sharply illuminated by the rising sun in this 2003 grab shot from the International Space Station. Hundreds of cinder cone volcanoes and lava flows are scattered across a distinctive gray landscape of their own creation. These Pinacate basalts, draped across a nearly contemporaneous volcanic mountain, cover 1800 km2 of Lower Sonoran Desert.

The small volcanoes are called monogenetic because each was built in one continuous, short eruption - weeks to months, years at most - with thousands of years between eruptions. Volcan Santa Clara, the mountain, is profoundly different; created by numerous eruptions over more than a million years, apparently from the same, evolving magma body.

Pinacate is famous for its giant maar-calderas, those exceptionally large craters clearly visible in a line down the center of the image. Short ranges of crystalline rock mountains near the margins, all around the field, show that the basalts are entirely on continental crust. Active sand dunes impinge upon the west (upper left) side of the field; aeolian sand plays an important role in cone erosion.      (10/12)

Volcan Santa Clara

Placeholder Picture

Volcan Santa Clara is a trachyte shield volcano whose official geographic name is “Sierra del Pinacate;” it has two names because we have learned a lot in the past 50 years. The mountain towers a thousand meters over the desert and, like the desert around it, is covered with Pinacate monogenetic volcanoes and their basalt flows (as seen below).

Although labeled a mountain range (sierra) on maps, it is a single mountain (cerro) of 60 to 75 km3 volume. In comparison, Carnegie peak, a cinder cone slightly lower and left of Pinacate Peak on the summit platform, has a volume of 0.04 km3.

Until it attracted my attention in 1973, people mostly ignored it. (11/09)

Placeholder Picture

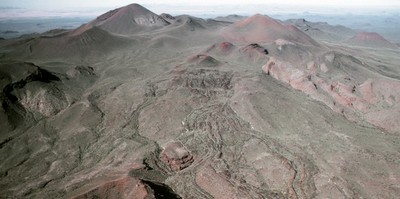

Pinacate basalt dominates but small areas of light gray rock can be seen at the base of Pinacate Peak (top center) and in the middle left. A large area of reddish gray rock is on the right. These rocks are trachytes, rich in feldspar, whose magmas evolved from a basalt magma as crystals of dark colored minerals grew in the liquid and removed the elements that cause basalt to be black. Santa Clara was built by sequential eruptions from a single magma body as it cooled and evolved as explained in its own section.

Why two names? Fr. Eusebio Fransisco Kino, the first European explorer and documenter of Pimeria Alta in the late 1600s, named the mountain “Santa Clara” on his last visit to its summit in 1701, unmindful of the Ha Ced O’odham name Shuk To’ak. Over the next 150 years, Santa Clara was the label for the mountain at the head of the Gulf on dozens of maps - in Europe or Eastern North America. The Mexican people, who lived nearby in a desert of mostly gray-toned mountains, had no knowledge of these maps so they related the black mountain to the ubiquitous black Eleodes armata beetle which is called Pinacat’l in the Nahuat’l language still in use at the time.

Americans exploring the Gadsden Purchase, and marking its border in the 1850s, may have heard Pinacat’l as “Pinacate.” Mining engineer Herman Ehrenberg’s 1854 Map of the Gadsden Purchase has the first appearance in print of the name “Pinecate Mt” (sic) which gradually replaced Santa Clara on later maps. The O’odam “Shuk To’ak” (black hill) became Santa Clara, because Kino did not care, and then “Pinacate,” because Ehrenberg did not know. The trachyte shield volcano is not “To’ak” (black) nor is it “Pinacate” (monogenetic basalt), but something quite different. I resurrected Kino’s “Santa Clara” as a geologic name for it, with no intention of changing the official geography. (11/11)

Monogenetic Volcanoes

Placeholder Picture

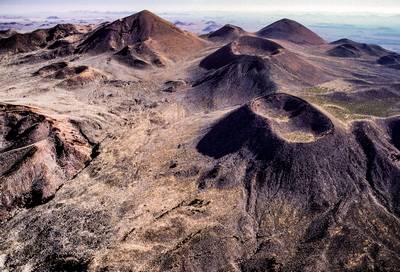

“Cinder cone” is the common name for monogenetic volcanoes like these more-or-less conical hills on the Santa Clara summit platform. They were built by the energy of volatile constituents of the basalt magma (water, SO2, CO2) boiling out in the topmost conduit. Expanding bubbles blew the liquid into fountains of fire-fragments we call “pyroclasts.” Each blob of liquid was full of bubbles that continued to expand until it was no longer liquid and became “scoria.” The blobs arced radially outward to fall in rings, forming the cone-in-cone (crater-in-cone) hills in the picture.

All of them are scoria cones but only Carnegie (in the right distance) is a true cinder cone. Cinder is super-scoria, basalt froth made of tiny bubbles in vast profusion that stretched the liquid into thin sheets and rods between them as they expanded the liquid a hundred times. Carnegie’s cinder jet blew a blanket over the the top of Santa Clara that covers everything in this photograph. (11/11)

Placeholder Picture

Carnegie, seen from the other side, is located on the north edge of the Santa Clara summit platform. Cinder covers some of the flow basalts, particularly in the lower part of the photo and the northern wall of the cone collapsed down the north flank of Santa Clara in a debris flow, only to be partially rebuilt by the continuing eruption. After the cinder cone building phase, basalt continued to flow from a N70W fissure at the left base of the cone wall; extending 15 km down the east flank of Santa Clara and onto the desert flat as the longest flow in the field.

Placeholder Picture

Cinder is the main economic product of fields like Pinacate, few of those 50 other fields have escaped the scars of prospecting or mining. The cinder mine at La Laja is the largest in Pinacate; but many cinder prospects scar other parts of the field. It was opened in the 1960s to provide material for building Highway 2 that was planned to cross northern Mexico. After the part across Sonora was finished, cinder was shipped to Phoenix for landscaping until the mine closed in 1978. This mine, only 6 km from the highway, saved Tecolote from destruction.

Placeholder Picture

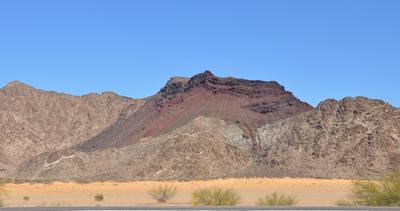

La Silla (the chair), near Highway 2 on the west, represents the typical Pinacate monogenetic volcano (465 have been mapped). It is a hill of basalt scoria slowly melting away in the desert’s violent but very sporadic rainstorms. Both spectacular and isolated, it is one of three Pinacate volcanoes perched on crystalline rocks of basin & range mountains..

Placeholder Picture

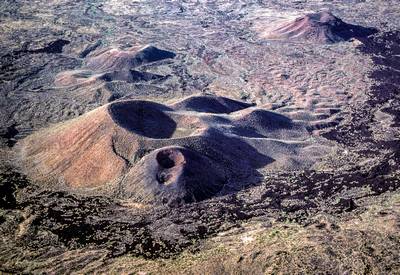

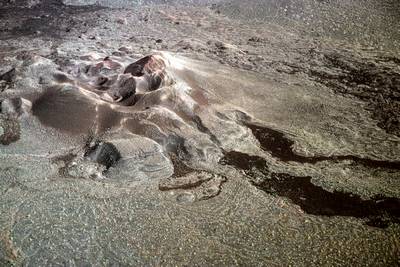

Young cones, like Julian Hayden, the black one in this group of three, have sharp cone edges and no slope erosion. Hayden erupted onto the north side of a larger, older cone that shows rills down its slopes and rounder crater edges. This cone, in turn, had erupted adjacent to an even older cone whose crater has been eroded into an open “U.” The Hayden lava flow in the foreground came out on the high point of the underlying slope so it split into branches, east and west around the Hayden group. (11/11)

Tecolote WGDV

Placeholder Picture

Tecolote, the brown mounds on the right, appears to be just one more ordinary cinder cone when seen from the rim of Elegante Crater, 4 kilometers to the south west. (11/11)

Placeholder Picture

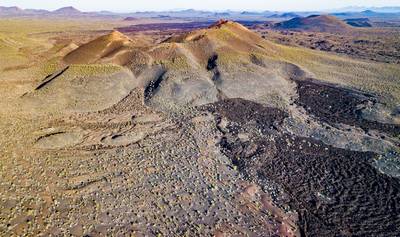

Ordinary until you look more closely; this volcano is unique. The right-hand ridge has several parallel lines - faults. Three valleys cut through the southern cone wall and each has a lava flow that lacks airfall cinder. The cone appears to have melted inside after it had been built!

Placeholder Picture

The east ridge crest sank more than 3 m into the ridge. On the east slope (right side) the scarps are lit by sunlight streaming parallel to the slope; more numerous scarps on the west are in shadow.

Placeholder Picture

Dawn light accentuates the the three valleys in Tecolote’s south side. Most of the modification occurred in the enigmatic “Cinder Block,” that gray wedge in front of the higher, bomb-covered, cone wall. Tecolote is probably the most important volcano in Pinacate because nothing like it has been described.

Great Maar-Calderas

Placeholder Picture

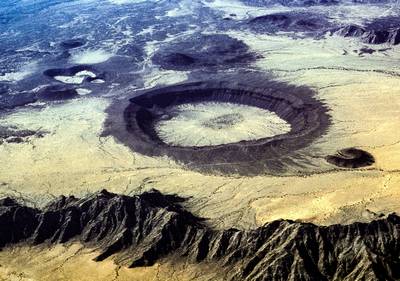

Mile-wide MacDougal Crater, topmost in that line on the second (elements) image, is one of Pinacate’s great maar-calderas, a destructional landform blasted into the desert by steam explosions. Pinacate is famous for its maar calderas because they are dry, deep, and easy to visit. Most others in the world are lakes - that’s what the word “maar” means.

Placeholder Picture

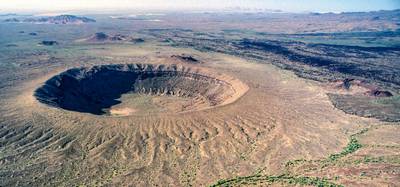

Elegante, on the northeast drive, is the largest in the field; 1600 m across, 250 m deep, a third to a half of a cubic kilometer volume. A basalt flow contemporaneous with the eruption has an Ar age of 32 pm 6 Ka.

Placeholder Picture

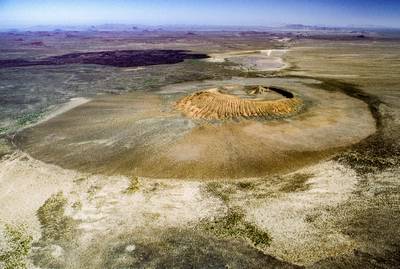

Cerro Colorado is best described as a tuff cone. It erupted into the East Side Drainage, a wanna-be water course of about 2 m per km gradient that marks the eastern boundary of the volcanic field. Unlike the desert sites of the other maar-calderas, this place on the edge of the field has no stack of older basalts to hold up vertical walls of a pit.
